1.颠覆行业的泵头外观设计，引领行业潮流。
2.金年会深井泵采用宽电压设计，单相120V启动，160V-240V正常使用。电机内置保护器，具有烧机保护功能。全扬程设计，任何负载下可放心使用。
3.采用H级全铜漆包线，耐高温180℃。
4.油浸式电机，潜水深度达150m。
5.采用304#不锈钢焊接轴，不锈钢304螺丝，耐腐更耐用，可选配304机筒。
6.整体浮动式叶轮结构设计，降低启动转矩，能过细沙等小杂质。
7.接插式电缆，更换方便。8.销子型结构，拆卸方便。
◆ 温度不超过 40℃；
◆ 固体物含量 ( 按重量计 ) 不大于 0.01%；
◆ 酸碱 PH 值 6.5~8.5；
◆ 硫化氢含量不大于 1.5mg/l , 不含任何油类。( 使用在深井中时 , 井筒应保持垂直 , 不允许有双向弯曲。)
| 型号 | 配管内径 | 额定流量 | 最大流量 | 额定扬程 | 最高扬程 | 额定功率 | 额定电流 | 电缆线长度 |
| mm | m³/h | m³/h | m | m | kW | A | m | |

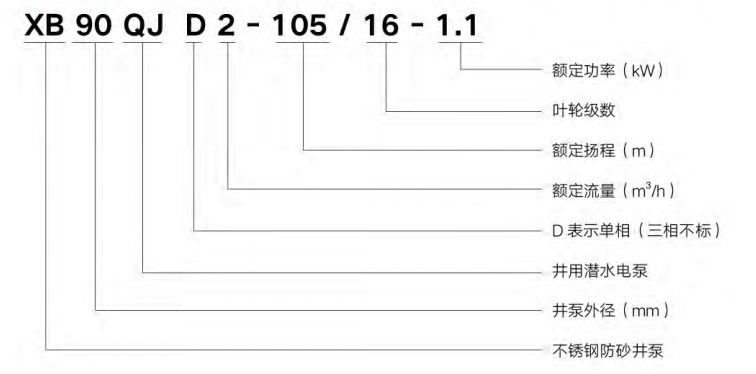

| XB90QJD2-33/5-0.37 | 25 | 2 | 5 | 32 | 36 | 0.37 | 4.2 | 2 |
| XB90QJD2-52/8-0.55 | 25 | 2 | 5 | 52 | 58 | 0.55 | 5.1 | 2 |
| XB90QJD2-65/10-0.75 | 25 | 2 | 5 | 65 | 73 | 0.75 | 7.2 | 2 |
| XB90QJD2-105/16-1.1 | 25 | 2 | 5 | 105 | 117 | 1.1 | 8.1 | 2 |
| XB90QJD2-140/21-1.5 | 25 | 2 | 5 | 140 | 154 | 1.5 | 10.8 | 2 |
| XB90QJD2-180/26-2.2 | 25 | 2 | 5 | 180 | 198 | 2.2 | 15.6 | 2 |
| XB90QJD2-190/28-2.2(增强) | 25 | 2 | 5 | 190 | 210 | 2.2 | 15.6 | 2.5 |
| XB90QJD2-250/38-3.0 | 25 | 2 | 5 | 250 | 279 | 3 | 19.1 | 2.5 |
| XB90QJ2-105/16-1.1 | 25 | 2 | 5 | 105 | 117 | 1.1 | 3.3 | 2 |
| XB90QJ2-140/21-1.5 | 25 | 2 | 5 | 140 | 154 | 1.5 | 4.3 | 2 |
| XB90QJ2-180/26-2.2 | 25 | 2 | 5 | 180 | 198 | 2.2 | 5.8 | 2.5 |
| XB90QJ2-250/38-3.0 | 25 | 2 | 5 | 250 | 279 | 3 | 8.8 | 2.5 |
| XB90QJ2-315/48-4.0 | 25 | 2 | 5 | 315 | 352 | 4 | 10.4 | 2.5 |
| XB90QJ2-406/62-5.5 | 25 | 2 | 5 | 406 | 454 | 5.5 | 13.2 | 3.8 |
| XB90QJ2-510/78-7.5 | 25 | 2 | 5 | 510 | 572 | 7.5 | 18.4 | 3.8 |
| XB90QJ(D)5-35/7-0.75 | 38 | 5 | 9 | 35 | 45 | 0.75 | 7.2 | 2 |
| XB90QJD5-58/12-1.1 | 38 | 5 | 9 | 58 | 77 | 1.1 | 8.1 | 2 |
| XB90QJD5-75/15-1.5 | 38 | 5 | 9 | 75 | 96 | 1.5 | 10.8 | 2 |
| XB90QJD5-100/19-2.2 | 38 | 5 | 9 | 100 | 128 | 2.2 | 15.6 | 2 |
| XB90QJD5-125/26-3.0 | 38 | 5 | 9 | 125 | 166 | 3 | 19.1 | 2.5 |
| XB90QJ5-58/12-1.1 | 38 | 5 | 9 | 58 | 77 | 1.1 | 3.3 | 2 |
| XB90QJ5-75/15-1.5 | 38 | 5 | 9 | 75 | 96 | 1.5 | 4.3 | 2 |
| XB90QJ5-100/19-2.2 | 38 | 5 | 9 | 100 | 128 | 2.2 | 5.8 | 2.5 |
| XB90QJ5-125/26-3.0 | 38 | 5 | 9 | 125 | 166 | 3 | 8.8 | 2.5 |
| XB90QJ5-170/35-4.0 | 38 | 5 | 9 | 170 | 224 | 4 | 10.4 | 2.5 |
| XB90QJ5-215/44-5.5 | 38 | 5 | 9 | 215 | 282 | 5.5 | 13.2 | 3.8 |
| XB90QJ5-260/54-7.5 | 38 | 5 | 9 | 260 | 346 | 7.5 | 18.4 | 3.8 |
| XB90QJD8-32/7-1.1 | 51 | 8 | 12 | 32 | 42 | 1.1 | 8.1 | 2 |
| XB90QJD8-46/10-1.5 | 51 | 8 | 12 | 46 | 60 | 1.5 | 10.8 | 2 |
| XB90QJD8-55/12-2.2 | 51 | 8 | 12 | 55 | 72 | 2.2 | 15.6 | 2 |
| XB90QJD8-80/17-3.0 | 51 | 8 | 12 | 80 | 102 | 3 | 19.1 | 2.5 |
| XB90QJ8-32/7-1.1 | 51 | 8 | 12 | 32 | 42 | 11 | 3.3 | 2 |
| XB90QJ8-46/10-1.5 | 51 | 8 | 12 | 46 | 60 | 1.5 | 4.3 | 2 |
| XB90QJ8-55/12-2.2 | 51 | 8 | 12 | 55 | 72 | 2.2 | 5.8 | 2.5 |
| XB90QJ8-80/17-3.0 | 51 | 8 | 12 | 80 | 102 | 3 | 8.8 | 2.5 |
| XB90QJ8-90/22-4.0 | 51 | 8 | 12 | 90 | 132 | 4 | 10.4 | 2.5 |
| XB90QJ8-135/29-5.5 | 51 | 8 | 12 | 135 | 174 | 5.5 | 13.2 | 3.8 |
| XB90QJ8-165/36-7.5 | 51 | 8 | 12 | 165 | 216 | 7.5 | 18.4 | 3.8 |
| XB90QJD10-30/7-1.5 | 51 | 10 | 20 | 30 | 39 | 1.5 | 10.8 | 2 |
| XB90QJD10-40/10-2.2 | 51 | 10 | 20 | 40 | 55 | 2.2 | 15.6 | 2.5 |
| XB90QJD10-53/13-3.0 | 51 | 10 | 20 | 53 | 72 | 3 | 19.1 | 2.5 |
| XB90QJ10-22/5-1.1 | 51 | 10 | 20 | 22 | 30 | 1.1 | 3.3 | 2 |
| XB90QJ10-30/7-1.5 | 51 | 10 | 20 | 30 | 39 | 1.5 | 4.3 | 2 |
| XB90QJ10-40/10-2.2 | 51 | 10 | 20 | 40 | 55 | 2.2 | 5.8 | 2.5 |
| XB90QJ10-53/13-3.0 | 51 | 10 | 20 | 53 | 72 | 3 | 8.8 | 2.5 |
| XB90QJ10-75/17-4.0 | 51 | 10 | 20 | 75 | 94 | 4 | 10.4 | 2.5 |
| XB90QJ10-102/23-5.5 | 51 | 10 | 20 | 102 | 127 | 5.5 | 13.2 | 3.8 |
| XB90QJ10-121/30-7.5 | 51 | 10 | 20 | 121 | 165 | 7.5 | 18.4 | 3.8 |
| XB90QJD16-27/9-2.2 | 51 | 16 | 22 | 27 | 50 | 2.2 | 15.6 | 2.5 |
| XB90QJD16-38/12-3.0 | 51 | 16 | 22 | 38 | 70 | 3 | 19.1 | 2.5 |
| XB90QJ16-27/9-2.2 | 51 | 16 | 22 | 27 | 50 | 2.2 | 5.8 | 2.5 |
| XB90QJ16-38/12-3.0 | 51 | 16 | 22 | 38 | 70 | 3 | 88 | 2.5 |
| XB90QJ16-52/16-4.0 | 51 | 16 | 22 | 52 | 90 | 4 | 10.4 | 2.5 |
| XB90QJ16-68/21-5.5 | 51 | 16 | 22 | 68 | 122 | 5.5 | 13.2 | 3.8 |
| XB90QJ16-91/27-7.5 | 51 | 16 | 22 | 91 | 155 | 7.5 | 18.4 | 3.8 |
